High-Dimensional Data

Prof Ron Yurko

2024-09-18

Reminders, previously, and today…

HW3 is due TONIGHT!
HW4 is due next Wednesday Sept 25th

Discussed creating pairs plots for initial inspection of several variables
Began thinking about ways to displays dataset structure via correlations
Used heatmaps and parallel coordinates plot to capture observation and variable structure

TODAY:

Projections based on some notion of “distance”
Intuition: Take high-dimensional data and represent it in 2-3 dimensions, then visualize those dimensions

Thinking about distance…

When describing visuals, we’ve implicitly “clustered” observations together

These types of task require characterizing the distance between observations

This is easy to do for 2 quantitative variables: just make a scatterplot (possibly with contours or heatmap)

But how do we define “distance” for high-dimensional data?

Let \(\boldsymbol{x}_i = (x_{i1}, \dots, x_{ip})\) be a vector of \(p\) features for observation \(i\)

Question of interest: How “far away” is \(\boldsymbol{x}_i\) from \(\boldsymbol{x}_j\)?

When looking at a scatterplot, you’re using Euclidean distance (length of the line in \(p\)-dimensional space):

\[d(\boldsymbol{x}_i, \boldsymbol{x}_j) = \sqrt{(x_{i1} - x_{j1})^2 + \dots + (x_{ip} - x_{jp})^2}\]

Distances in general

There’s a variety of different types of distance metrics: Manhattan, Mahalanobis, Cosine, Kullback-Leiber Divergence, Wasserstein, but we’re just going to focus on Euclidean distance

\(d(\boldsymbol{x}_i, \boldsymbol{x}_j)\) measures pairwise distance between two observations \(i,j\) and has the following properties:

Identity: \(\boldsymbol{x}_i = \boldsymbol{x}_j \iff d(\boldsymbol{x}_i, \boldsymbol{x}_j) = 0\)
Non-Negativity: \(d(\boldsymbol{x}_i, \boldsymbol{x}_j) \geq 0\)
Symmetry: \(d(\boldsymbol{x}_i, \boldsymbol{x}_j) = d(\boldsymbol{x}_j, \boldsymbol{x}_i)\)
Triange Inequality: \(d(\boldsymbol{x}_i, \boldsymbol{x}_j) \leq d(\boldsymbol{x}_i, \boldsymbol{x}_k) + d(\boldsymbol{x}_k, \boldsymbol{x}_j)\)

Distance Matrix: matrix \(D\) of all pairwise distances

\(D_{ij} = d(\boldsymbol{x}_i, \boldsymbol{x}_j)\)
where \(D_{ii} = 0\) and \(D_{ij} = D_{ji}\)

Multi-dimensional scaling (MDS)

General approach for visualizing distance matrices

Puts \(n\) observations in a \(k\)-dimensional space such that the distances are preserved as much as possible (where \(k << p\) typically choose \(k = 2\))

MDS attempts to create new point \(\boldsymbol{y}_i = (y_{i1}, y_{i2})\) for each unit such that:

\[\sqrt{(y_{i1} - y_{j1})^2 + (y_{i2} - y_{j2})^2} \approx D_{ij}\]

i.e., distance in 2D MDS world is approximately equal to the actual distance

Then plot the new \(\boldsymbol{y}\)s on a scatterplot

Use the scale() function to ensure variables are comparable
Make a distance matrix for this dataset
Visualize it with MDS

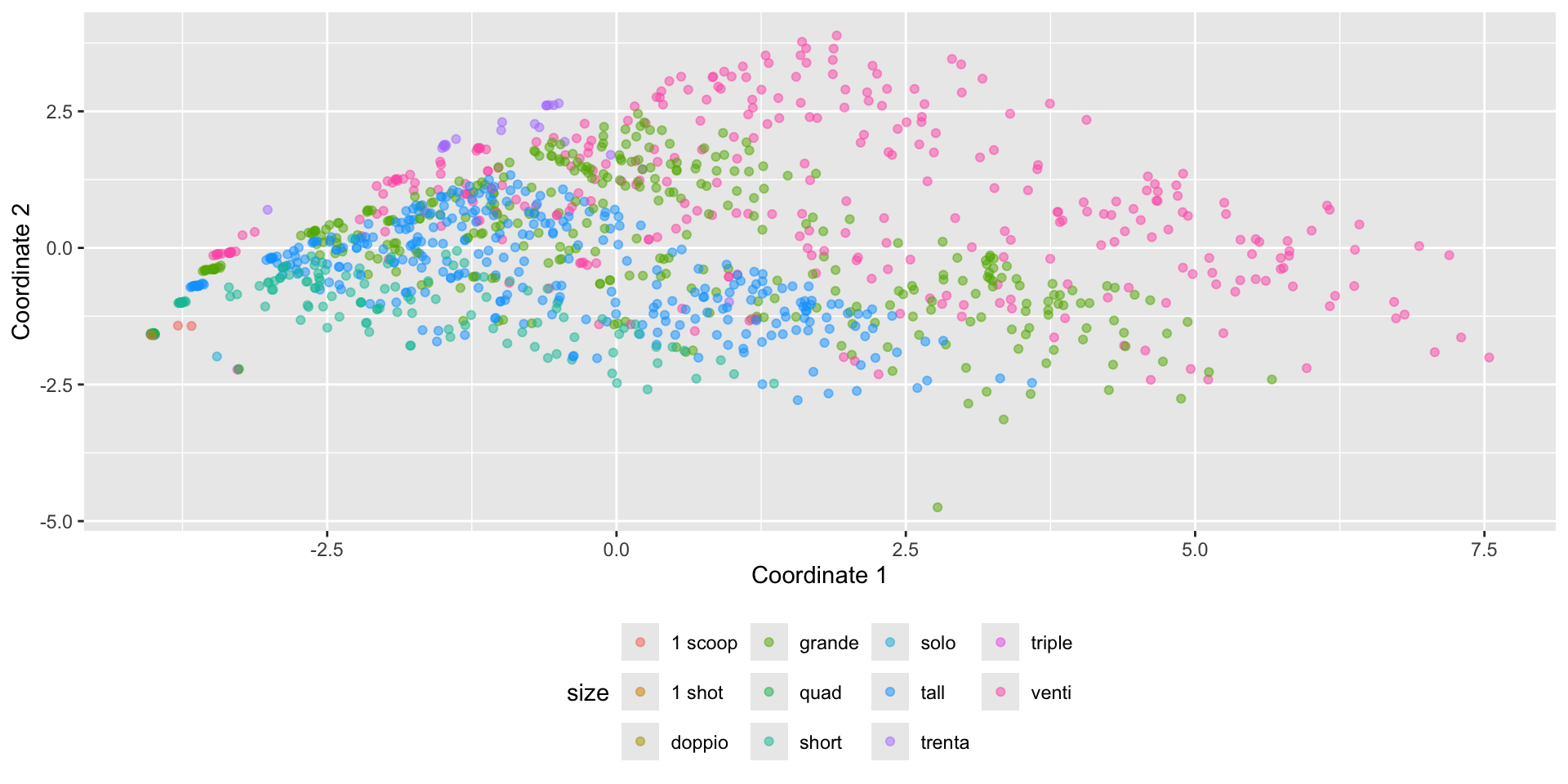

MDS example with Starbucks drinks

starbucks_scaled_quant_data <- starbucks |>
  dplyr::select(serv_size_m_l:caffeine_mg) %>%
  scale(center = FALSE, scale = apply(., 2, sd, na.rm = TRUE))

dist_euc <- dist(starbucks_scaled_quant_data)

starbucks_mds <- cmdscale(d = dist_euc, k = 2)

starbucks <- starbucks |>
  mutate(mds1 = starbucks_mds[,1],
         mds2 = starbucks_mds[,2])

starbucks |>
  ggplot(aes(x = mds1, y = mds2)) +
  geom_point(alpha = 0.5) +
  labs(x = "Coordinate 1", y = "Coordinate 2")

MDS example with Starbucks drinks

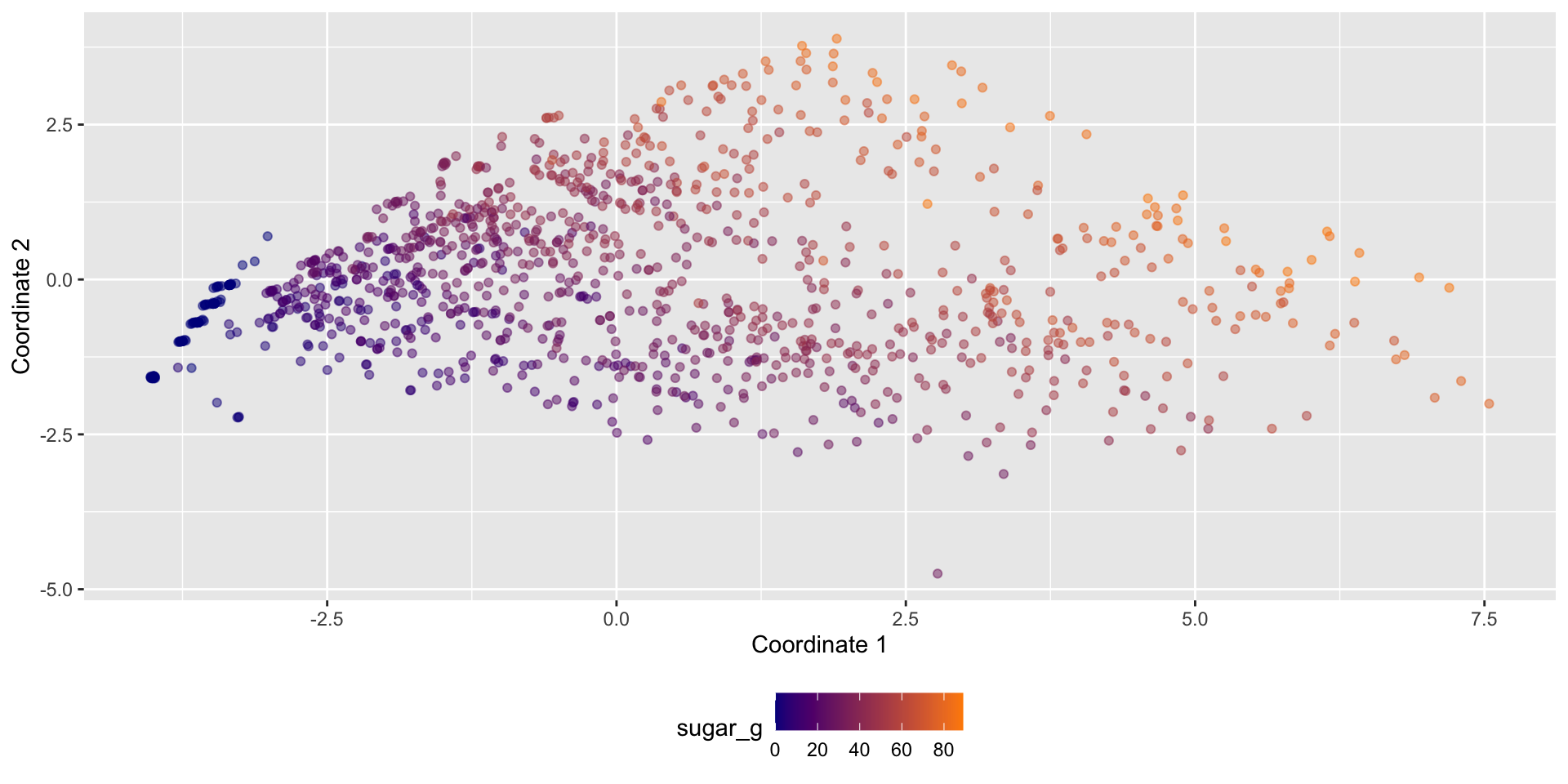

View structure with additional variables

Dimension reduction - searching for variance

GOAL: Focus on reducing dimensionality of feature space while retaining most of the information in a lower dimensional space

\(n \times p\) matrix \(\rightarrow\) dimension reduction technique \(\rightarrow\) \(n \times k\) matrix

Special case we just discussed: MDS

\(n \times n\) distance matrix \(\rightarrow\) MDS \(\rightarrow\) \(n \times k\) matrix (usually \(k = 2\))

Reduce data to a distance matrix
Reduce distance matrix to \(k = 2\) dimensions

Principal Component Analysis (PCA)

\[ \begin{pmatrix} & & \text{really} & & \\ & & \text{wide} & & \\ & & \text{matrix} & & \end{pmatrix} \rightarrow \text{matrix algebra stuff} \rightarrow \begin{pmatrix} \text{much} \\ \text{thinner} \\ \text{matrix} \end{pmatrix} \]

Start with \(n \times p\) matrix of correlated variables \(\rightarrow\) \(n \times k\) matrix of uncorrelated variables

Each of the \(k\) columns in the right-hand matrix are principal components, all uncorrelated with each other
First column accounts for most variation in the data, second column for second-most variation, and so on

Intuition: first few principal components account for most of the variation in the data

What are principal components?

Assume \(\boldsymbol{X}\) is a \(n \times p\) matrix that is centered and stardardized
Total variation \(= p\), since Var( \(\boldsymbol{x}_j\) ) = 1 for all \(j = 1, \dots, p\)
PCA will give us \(p\) principal components that are \(n\)-length columns - call these \(Z_1, \dots, Z_p\)

First principal component (aka PC1):

\[Z_1 = \phi_{11} X_1 + \phi_{21} X_2 + \dots + \phi_{p1} X_p\]

\(\phi_{j1}\) are the weights indicating the contributions of each variable \(j \in 1, \dots, p\)
Weights are normalized \(\sum_{j=1}^p \phi_{j1}^2 = 1\)
\(\phi_{1} = (\phi_{11}, \phi_{21}, \dots, \phi_{p1})\) is the loading vector for PC1

\(Z_1\) is a linear combination of the \(p\) variables that has the largest variance

What are principal components?

Second principal component:

\[Z_2 = \phi_{12} X_1 + \phi_{22} X_2 + \dots + \phi_{p2} X_p\]

\(\phi_{j2}\) are the weights indicating the contributions of each variable \(j \in 1, \dots, p\)
Weights are normalized \(\sum_{j=1}^p \phi_{j1}^2 = 1\)
\(\phi_{2} = (\phi_{12}, \phi_{22}, \dots, \phi_{p2})\) is the loading vector for PC2
\(Z_2\) is a linear combination of the \(p\) variables that has the largest variance
- Subject to constraint it is uncorrelated with \(Z_1\)

What are principal components?

We repeat this process to create \(p\) principal components

Uncorrelated: Each (\(Z_j, Z_{j'}\)) is uncorrelated with each other
Ordered Variance: Var( \(Z_1\) ) \(>\) Var( \(Z_2\) ) \(> \dots >\) Var( \(Z_p\) )
Total Variance: \(\sum_{j=1}^p \text{Var}(Z_j) = p\)

Intuition: pick some \(k << p\) such that if \(\sum_{j=1}^k \text{Var}(Z_j) \approx p\), then just using \(Z_1, \dots, Z_k\)

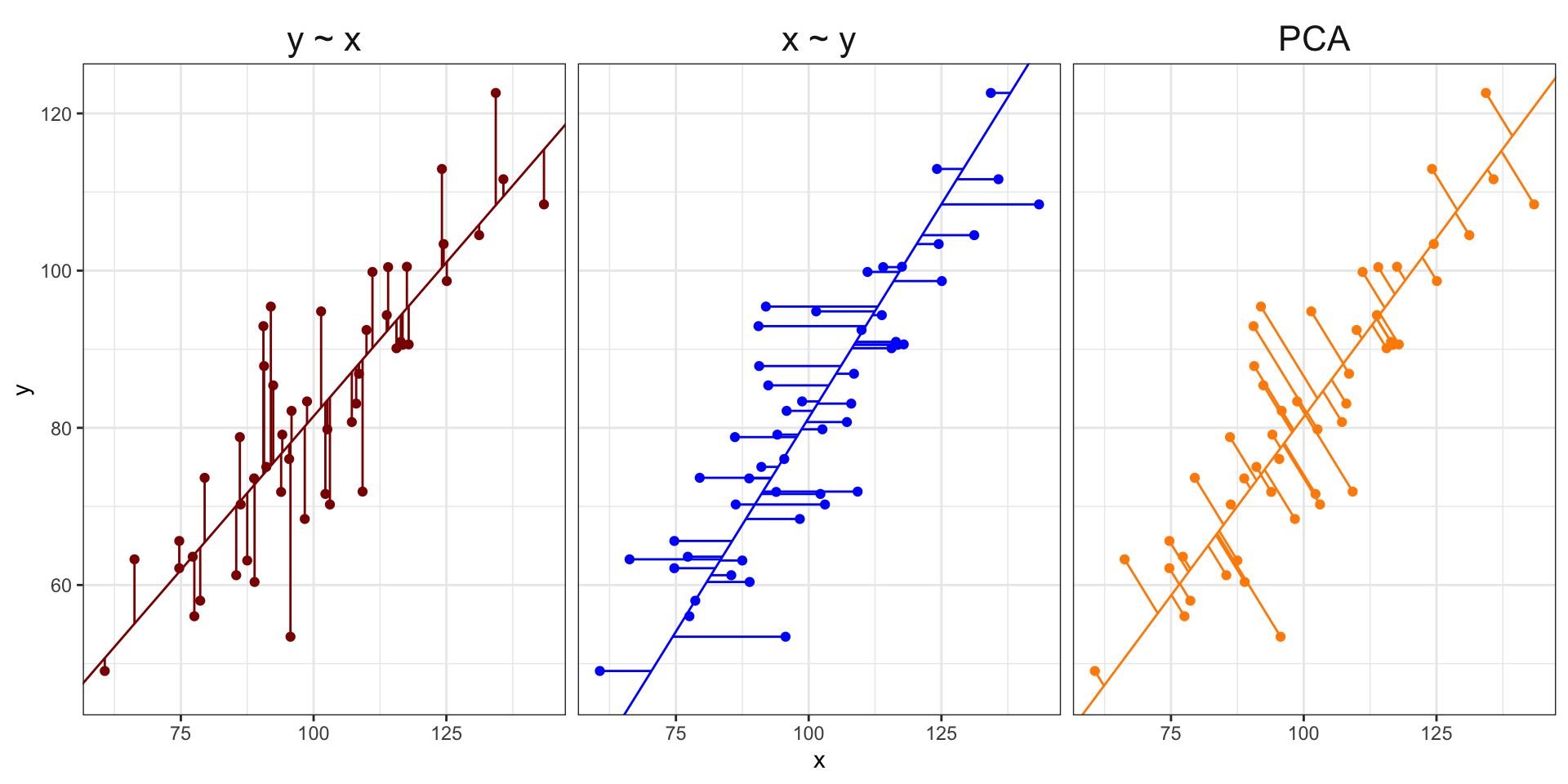

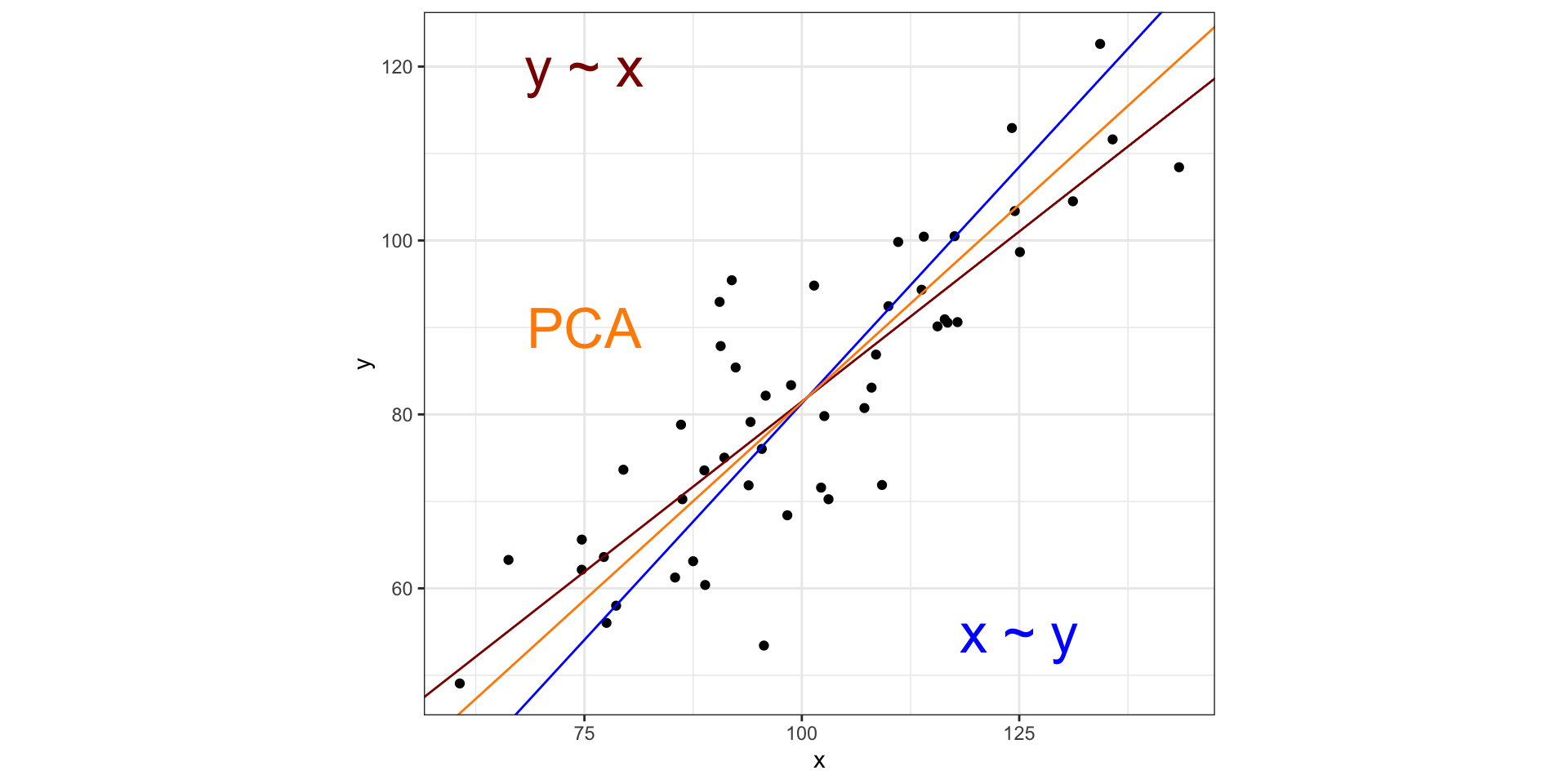

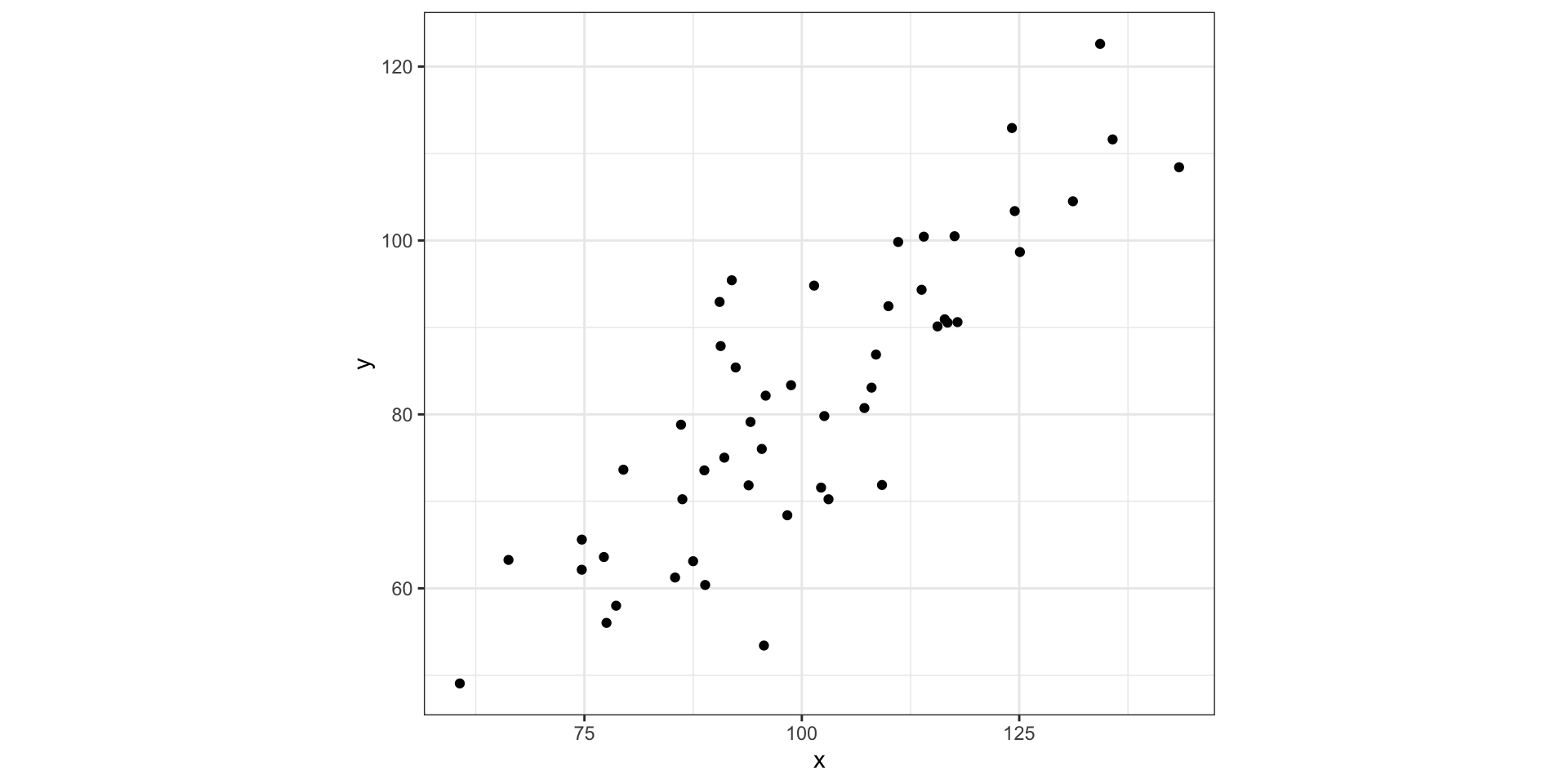

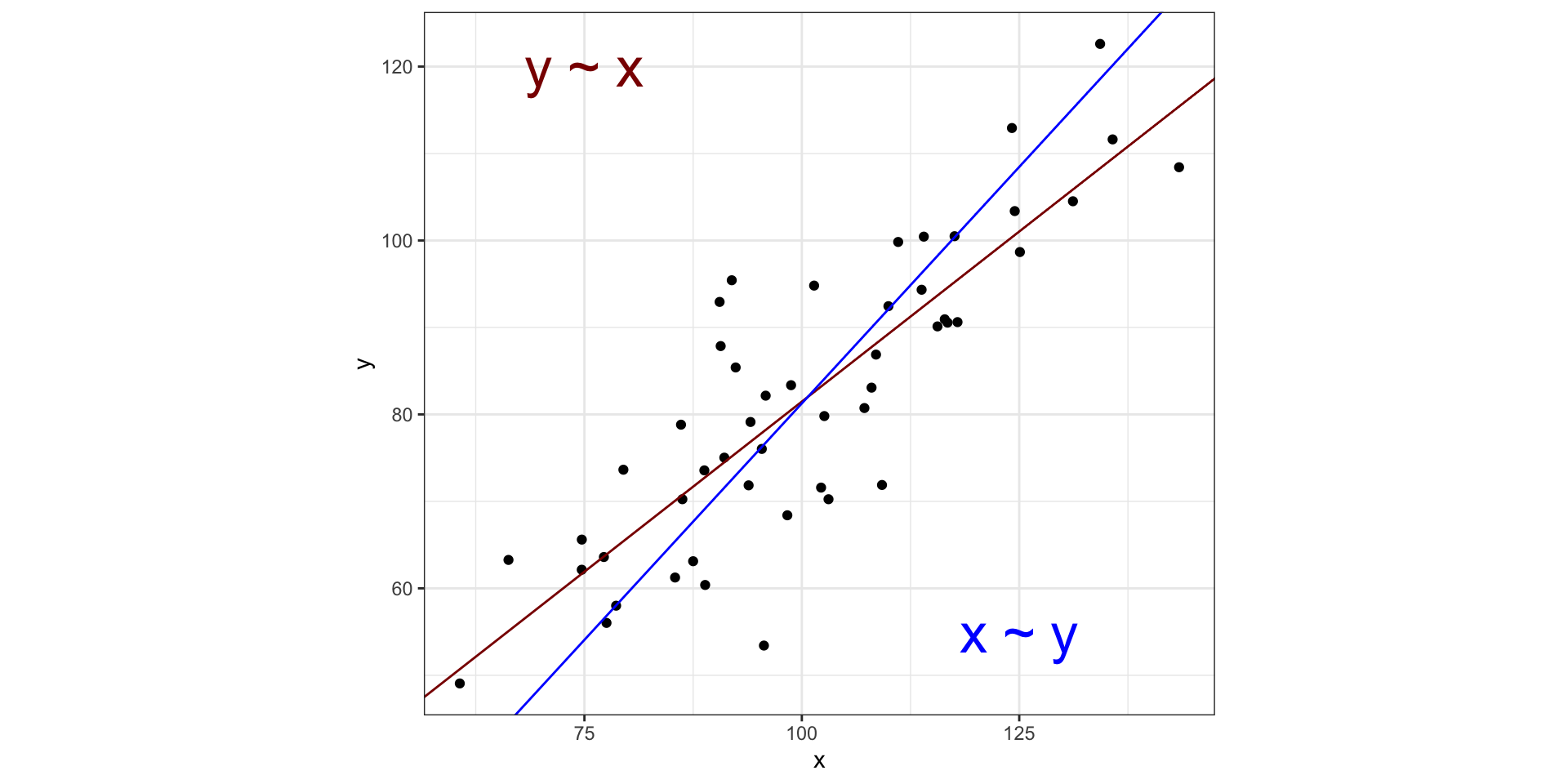

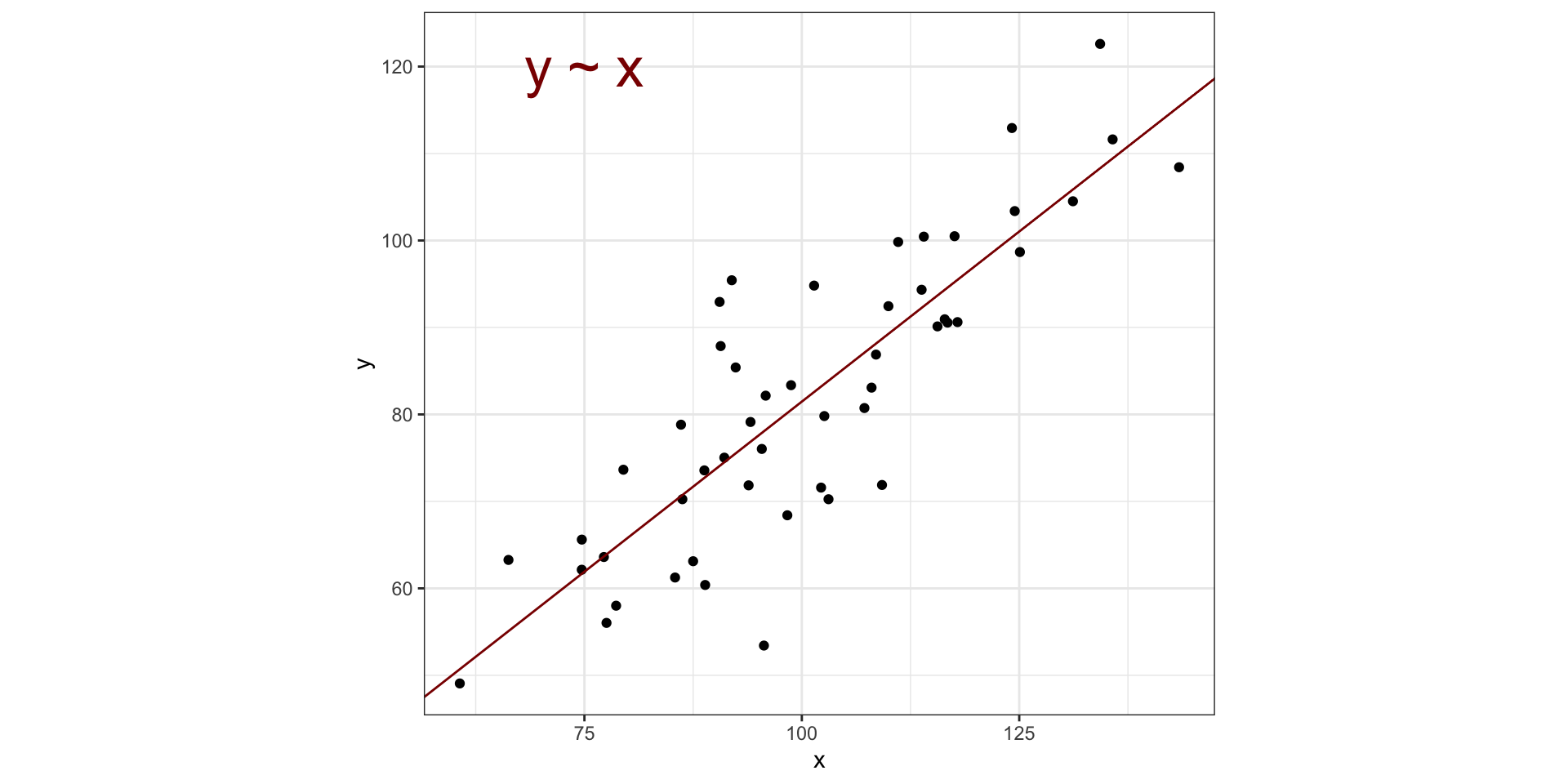

Visualizing PCA in two dimensions

So what do we do with the principal components?

The point: given a dataset with \(p\) variables, we can find \(k\) variables \((k << p)\) that account for most of the variation in the data

Note that the principal components are NOT easy to interpret - these are combinations of all variables

PCA is similar to MDS with these main differences:

MDS reduces a distance matrix while PCA reduces a data matrix
PCA has a principled way to choose \(k\)
Can visualize how the principal components are related to variables in data

Working with PCA on Starbucks drinks

Use the prcomp() function (based on SVD) for PCA on centered and scaled data

starbucks_pca <- prcomp(dplyr::select(starbucks, serv_size_m_l:caffeine_mg),
                        center = TRUE, scale. = TRUE)
summary(starbucks_pca)

Importance of components:
                          PC1    PC2    PC3     PC4     PC5     PC6    PC7
Standard deviation     2.4748 1.3074 1.0571 0.97919 0.67836 0.56399 0.4413
Proportion of Variance 0.5568 0.1554 0.1016 0.08716 0.04183 0.02892 0.0177
Cumulative Proportion  0.5568 0.7122 0.8138 0.90093 0.94276 0.97168 0.9894
                           PC8     PC9    PC10    PC11
Standard deviation     0.28123 0.16874 0.08702 0.04048
Proportion of Variance 0.00719 0.00259 0.00069 0.00015
Cumulative Proportion  0.99657 0.99916 0.99985 1.00000

Computing Principal Components

Extract the matrix of principal components \(\boldsymbol{Z} = XV\) (dimension of \(\boldsymbol{Z}\) will match original data)

starbucks_pc_matrix <- starbucks_pca$x
head(starbucks_pc_matrix)

           PC1        PC2        PC3           PC4         PC5         PC6
[1,] -3.766852 -1.0023657  0.2482698 -0.1521871448  0.24739830 -0.11365847
[2,] -3.633234 -0.6946439  1.2059943 -0.3720566566  0.06052789 -0.06406410
[3,] -3.518063 -0.3981399  2.2165170 -0.5967175941 -0.13122572 -0.01937237
[4,] -3.412061 -0.1067045  3.3741594 -0.8490378243 -0.26095965 -0.00899485
[5,] -3.721426 -0.9868147 -1.0705094  0.0949330091 -0.27181508  0.17491809
[6,] -3.564899 -0.6712499 -0.7779083 -0.0003019903 -0.72054963  0.37005543
             PC7         PC8        PC9        PC10         PC11
[1,] -0.02812472 0.006489978 0.05145094 -0.06678083 -0.019741873
[2,]  0.05460952 0.021148978 0.07094211 -0.08080545 -0.023480029
[3,]  0.09050806 0.031575955 0.08901403 -0.09389227 -0.028669251
[4,]  0.11585507 0.037521689 0.11287190 -0.11582260 -0.034691142
[5,]  0.07009414 0.037736197 0.02892317 -0.03631676 -0.005775410
[6,]  0.20236484 0.068154160 0.03705252 -0.03497690 -0.002469611

Columns are uncorrelated, such that Var( \(Z_1\) ) \(>\) Var( \(Z_2\) ) \(> \dots >\) Var( \(Z_p\) ) - can start with a scatterplot of \(Z_1, Z_2\)

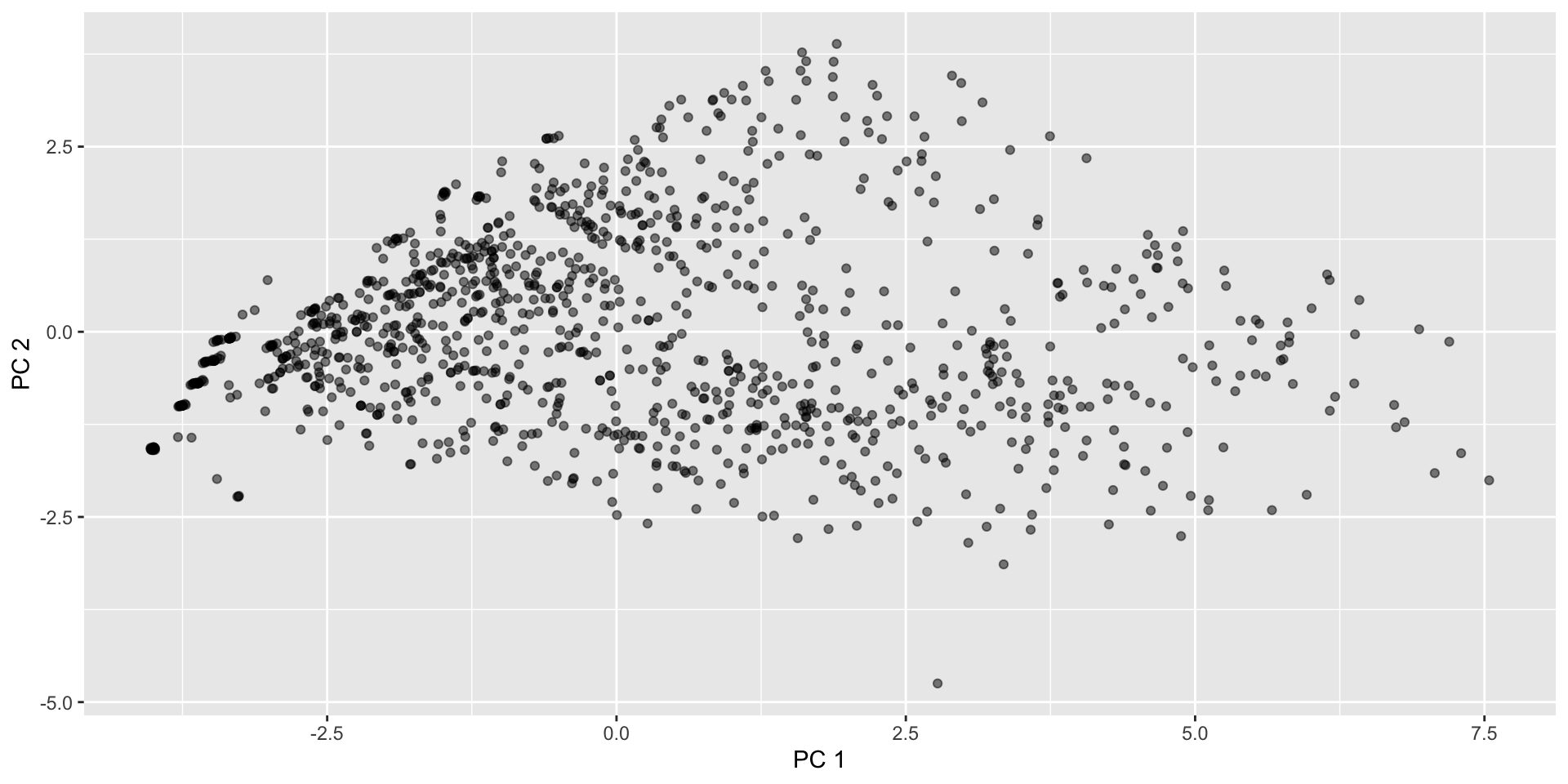

Starbucks drinks: PC1 and PC2

starbucks <- starbucks |>
  mutate(pc1 = starbucks_pc_matrix[,1],
         pc2 = starbucks_pc_matrix[,2])
starbucks |>
  ggplot(aes(x = pc1, y = pc2)) +
  geom_point(alpha = 0.5) +
  labs(x = "PC 1", y = "PC 2")

Starbucks drinks: PC1 and PC2

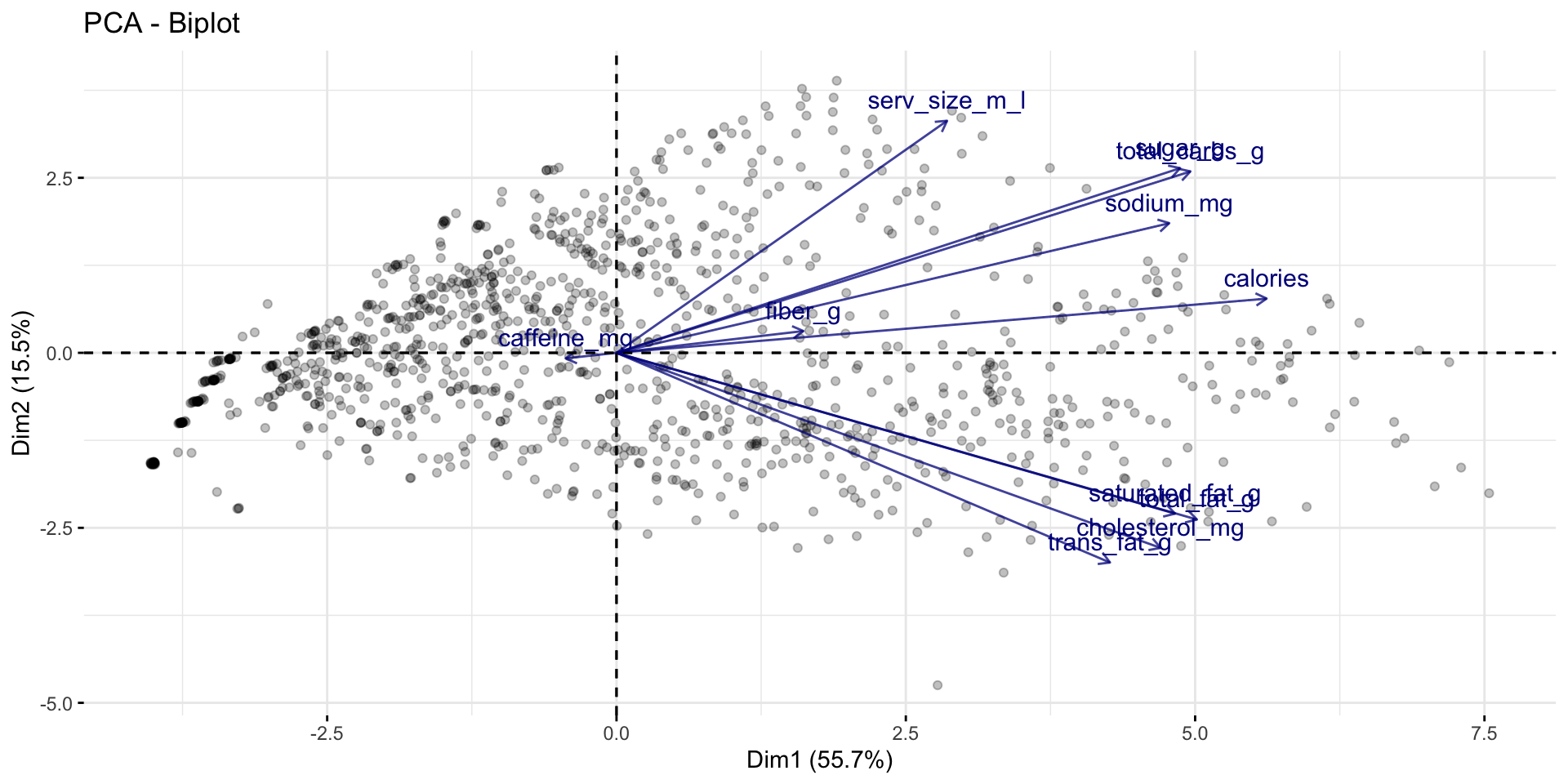

Making PCs interpretable with biplots (`factoextra`)

library(factoextra)
# Designate to only label the variables:
fviz_pca_biplot(
  starbucks_pca, label = "var",
  # Change the alpha for observations
  # which is represented by ind
  alpha.ind = .25,
  # Modify the alpha for variables (var):
  alpha.var = .75,
  col.var = "darkblue")

Making PCs interpretable with biplots (`factoextra`)

How many principal components to use?

Intuition: Additional principal components will add smaller and smaller variance

Keep adding components until the added variance drops off

summary(starbucks_pca)

Importance of components:
                          PC1    PC2    PC3     PC4     PC5     PC6    PC7
Standard deviation     2.4748 1.3074 1.0571 0.97919 0.67836 0.56399 0.4413
Proportion of Variance 0.5568 0.1554 0.1016 0.08716 0.04183 0.02892 0.0177
Cumulative Proportion  0.5568 0.7122 0.8138 0.90093 0.94276 0.97168 0.9894
                           PC8     PC9    PC10    PC11
Standard deviation     0.28123 0.16874 0.08702 0.04048
Proportion of Variance 0.00719 0.00259 0.00069 0.00015
Cumulative Proportion  0.99657 0.99916 0.99985 1.00000

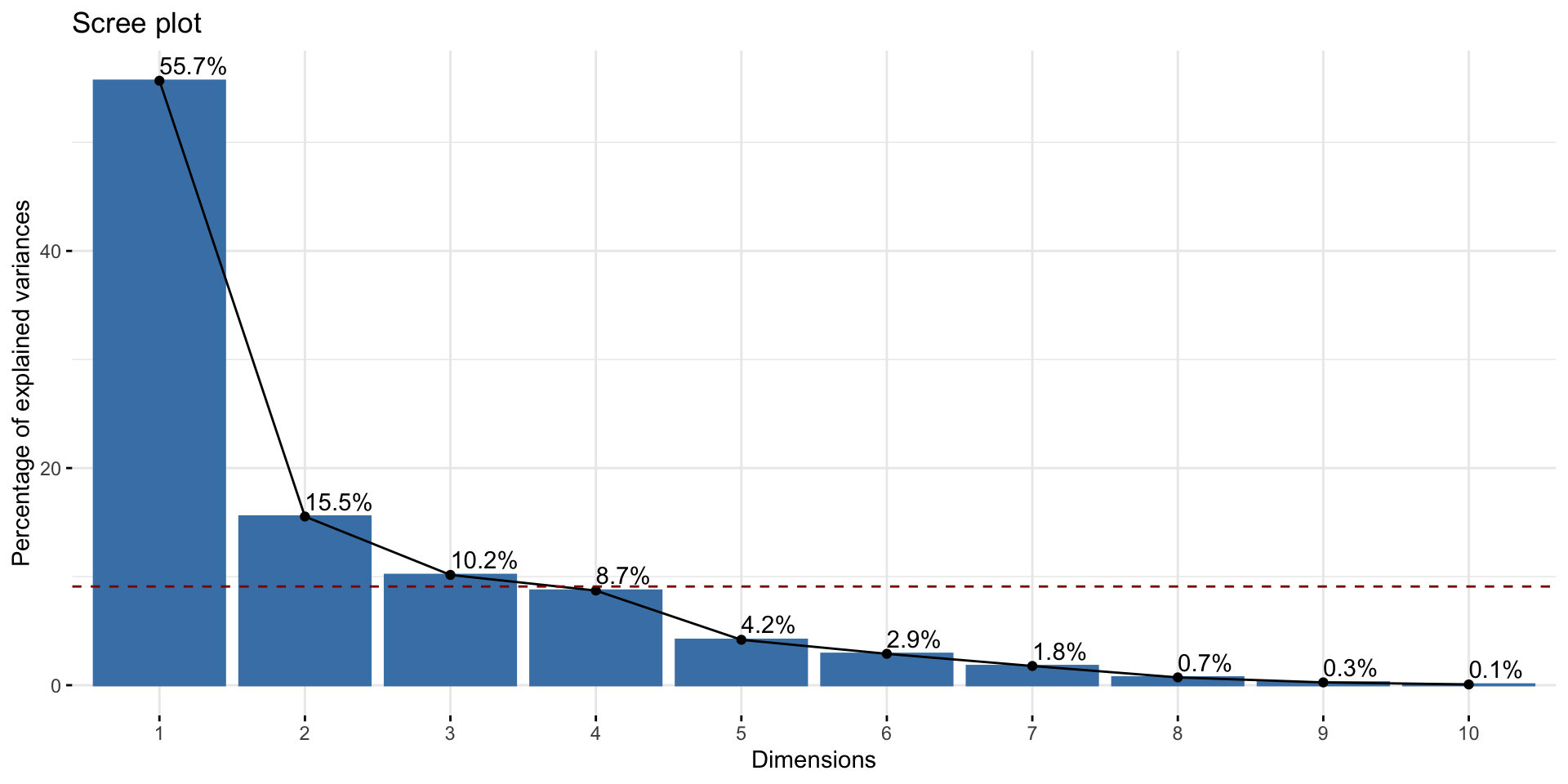

Create scree plot (aka “elbow plot”) to choose

fviz_eig(starbucks_pca, addlabels = TRUE) +
  geom_hline(yintercept = 100 * (1 / ncol(starbucks_pca$x)), linetype = "dashed", color = "darkred")

Nonlinear dimension reduction, e.g., t-SNE

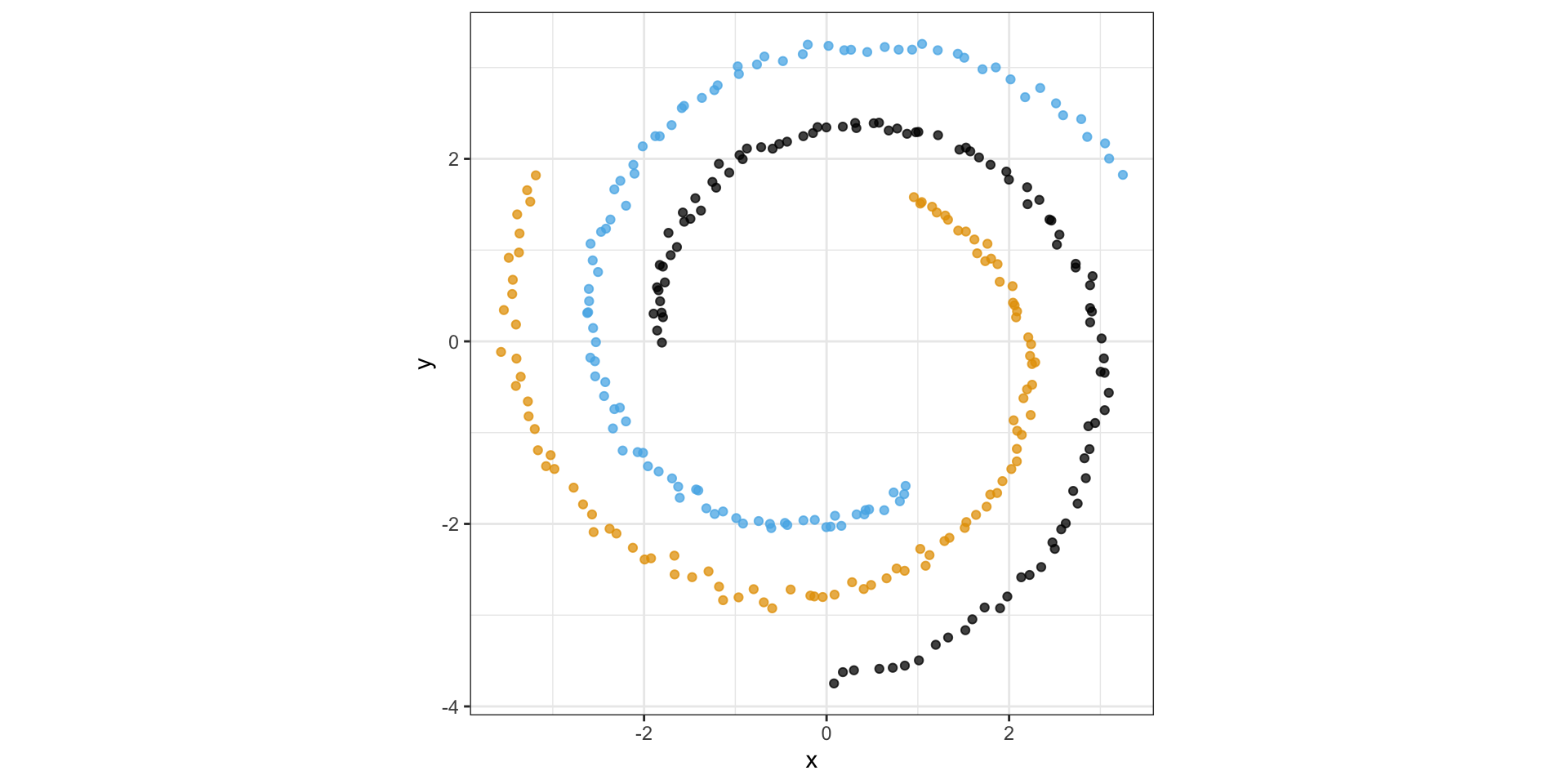

Consider the following spiral structure…

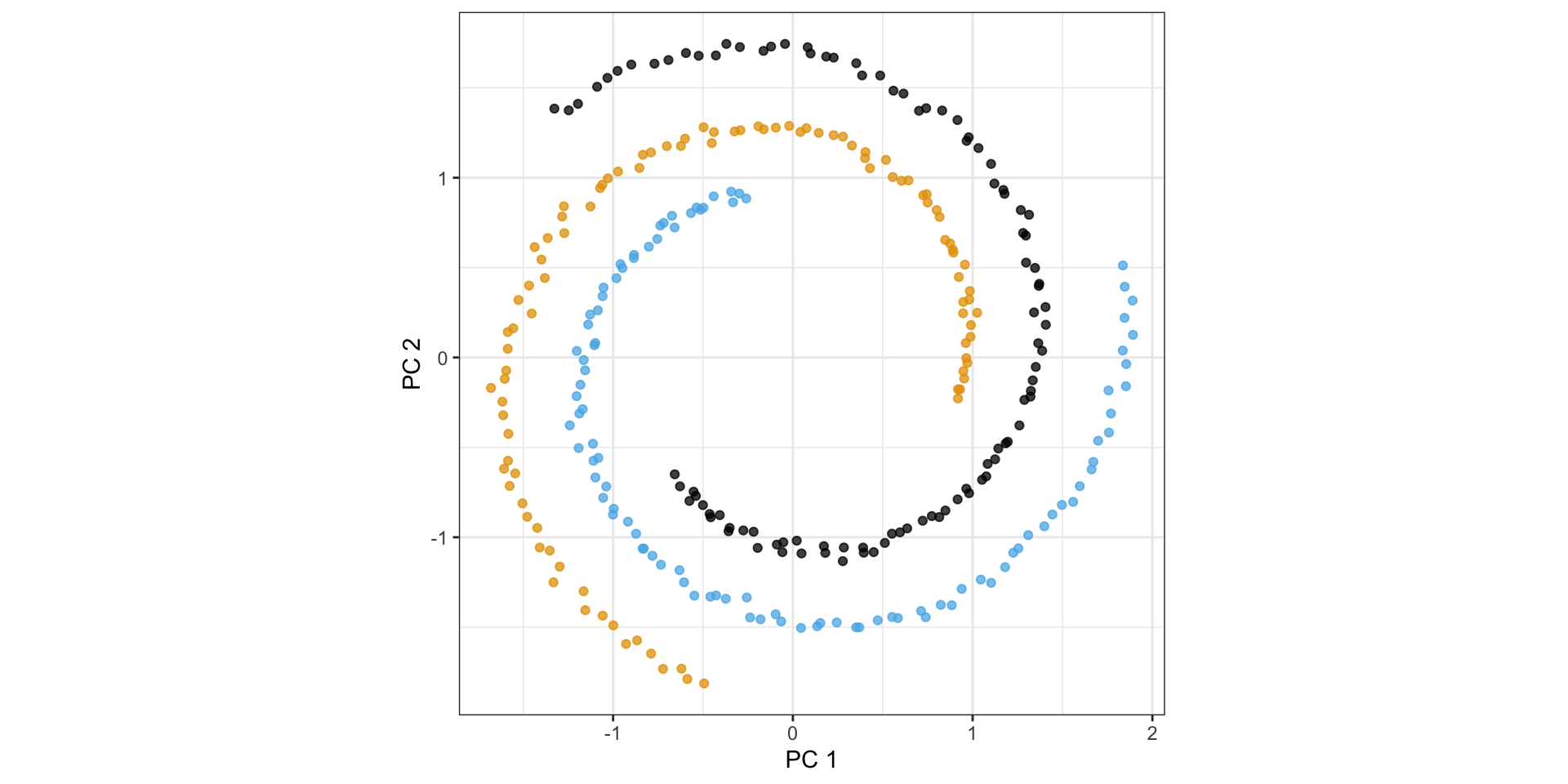

PCA simply rotates the data…

Nonlinear dimension reduction with t-SNE

t-distributed stochastic neighbor embedding

Construct conditional probability for similarity between observations in original space, i.e., probability \(x_i\) will pick \(x_j\) as its neighbor

\[p_{j \mid i}=\frac{\exp \left(-\left\|x_i-x_j\right\|^2 / 2 \sigma_i^2\right)}{\sum_{k \neq i} \exp \left(-\left\|x_i-x_k\right\|^2 / 2 \sigma_i^2\right)},\quad p_{i j}=\frac{\left(p_{j \mid i}+p_{i \mid j}\right)}{2 n}\]

\(\sigma_i\) is the variance of Gaussian centered at \(x_i\) controlled by perplexity: \(\log (\text { perplexity })=-\sum_j p_{j \mid i} \log _2 p_{j \mid i}\)

t-distributed stochastic neighbor embedding

Find points \(y_i\) in lower dimensional space with symmetrized student t-distribution

\[q_{j \mid i}=\frac{\left(1+\left\|y_i-y_j\right\|^2\right)^{-1}}{\sum_{k \neq i}\left(1+\left\|y_i-y_k\right\|^2\right)^{-1}}, \quad q_{i j}=\frac{q_{i \mid j}+q_{j \mid i}}{2 n}\]

Match conditional probabilities by minimize sum of KL divergences \(C=\sum_{i j} p_{i j} \log \left(\frac{p_{i j}}{q_{i j}}\right)\)

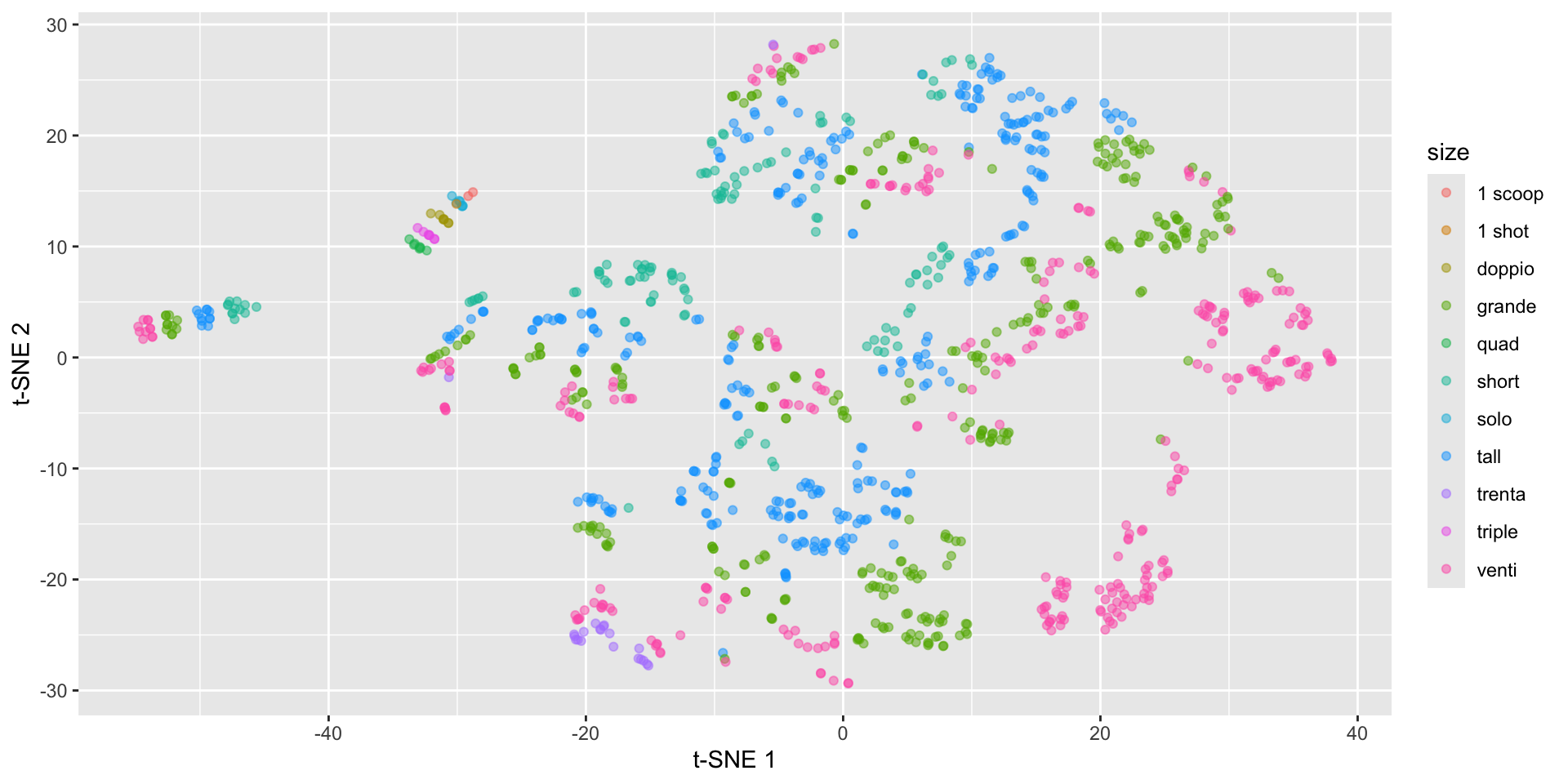

Starbucks t-SNE plot with `Rtsne`

set.seed(2013)
tsne_fit <- starbucks |>
  dplyr::select(serv_size_m_l:caffeine_mg) |>
  scale() |>
  Rtsne(check_duplicates = FALSE)

starbucks |>
  mutate(tsne1 = tsne_fit$Y[,1],
         tsne2 = tsne_fit$Y[,2]) |>
  ggplot(aes(x = tsne1, y = tsne2,
             color = size)) +
  geom_point(alpha = 0.5) +
  labs(x = "t-SNE 1", y = "t-SNE 2")

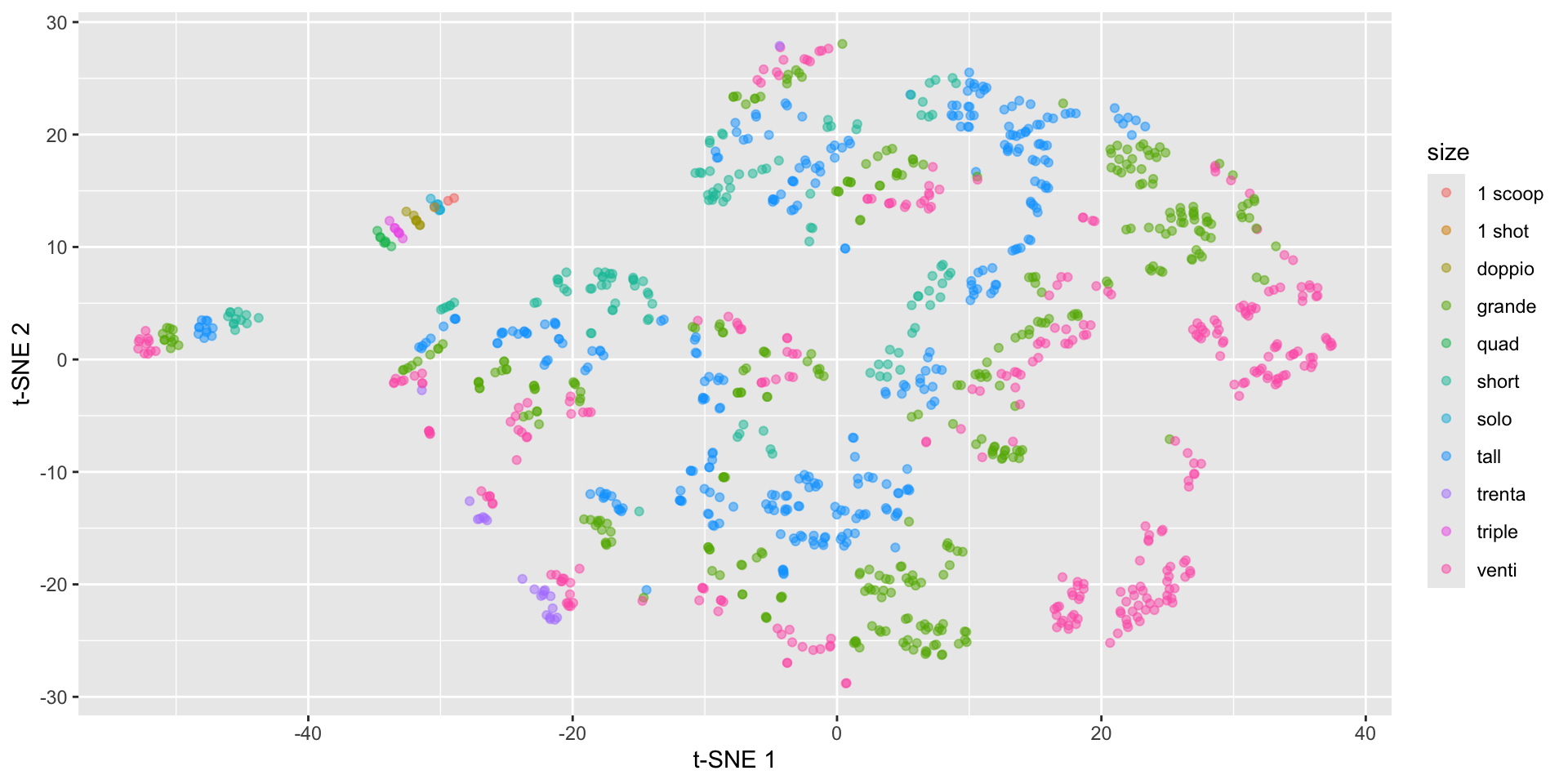

Starbucks t-SNE plot with `Rtsne`

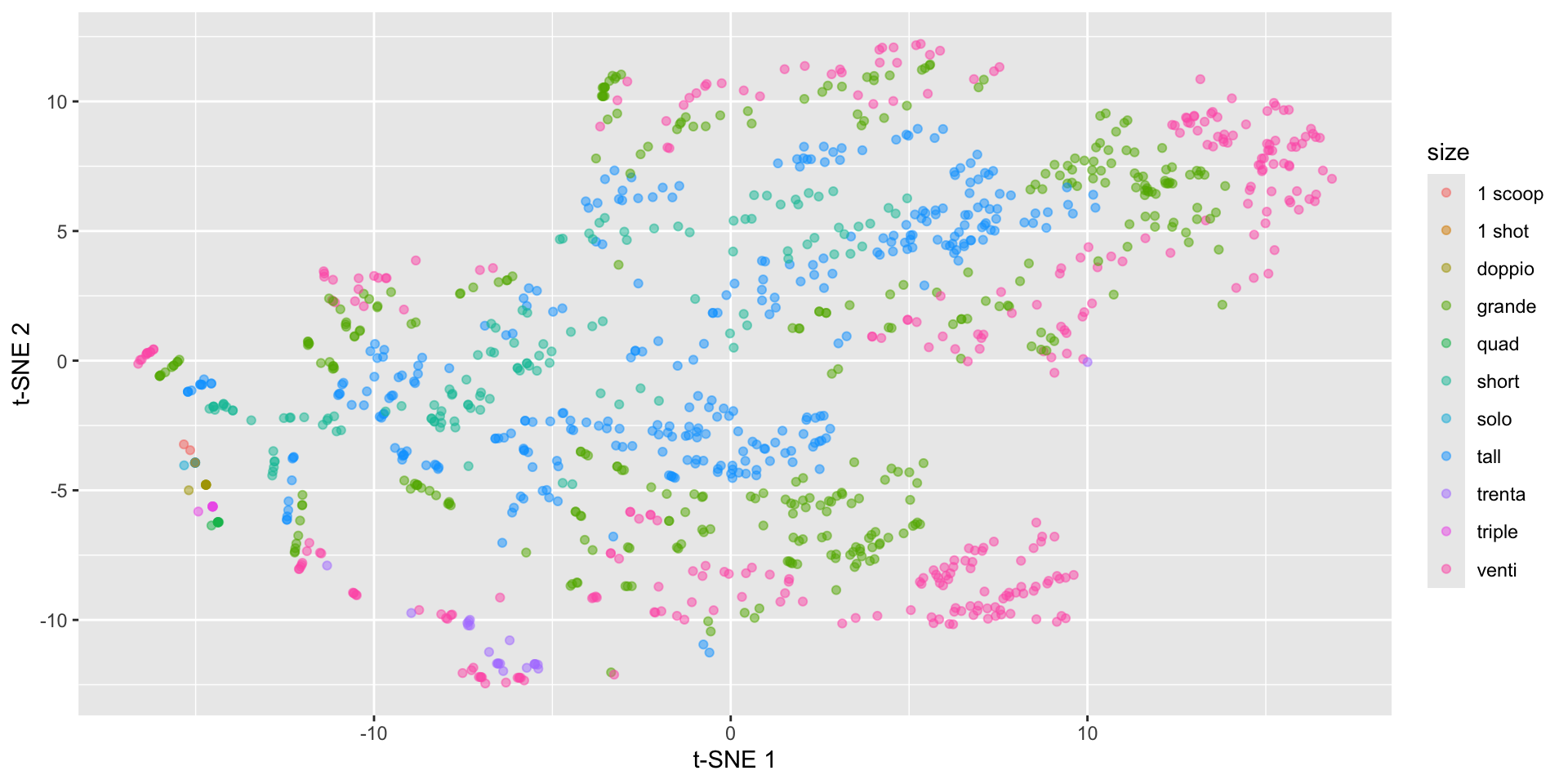

Starbucks t-SNE plot - involves randomness!

set.seed(2014)
tsne_fit <- starbucks |>
  dplyr::select(serv_size_m_l:caffeine_mg) |>
  scale() |>
  Rtsne(check_duplicates = FALSE)

starbucks |>
  mutate(tsne1 = tsne_fit$Y[,1],
         tsne2 = tsne_fit$Y[,2]) |>
  ggplot(aes(x = tsne1, y = tsne2,
             color = size)) +
  geom_point(alpha = 0.5) +
  labs(x = "t-SNE 1", y = "t-SNE 2")

Starbucks t-SNE plot - involves randomness!

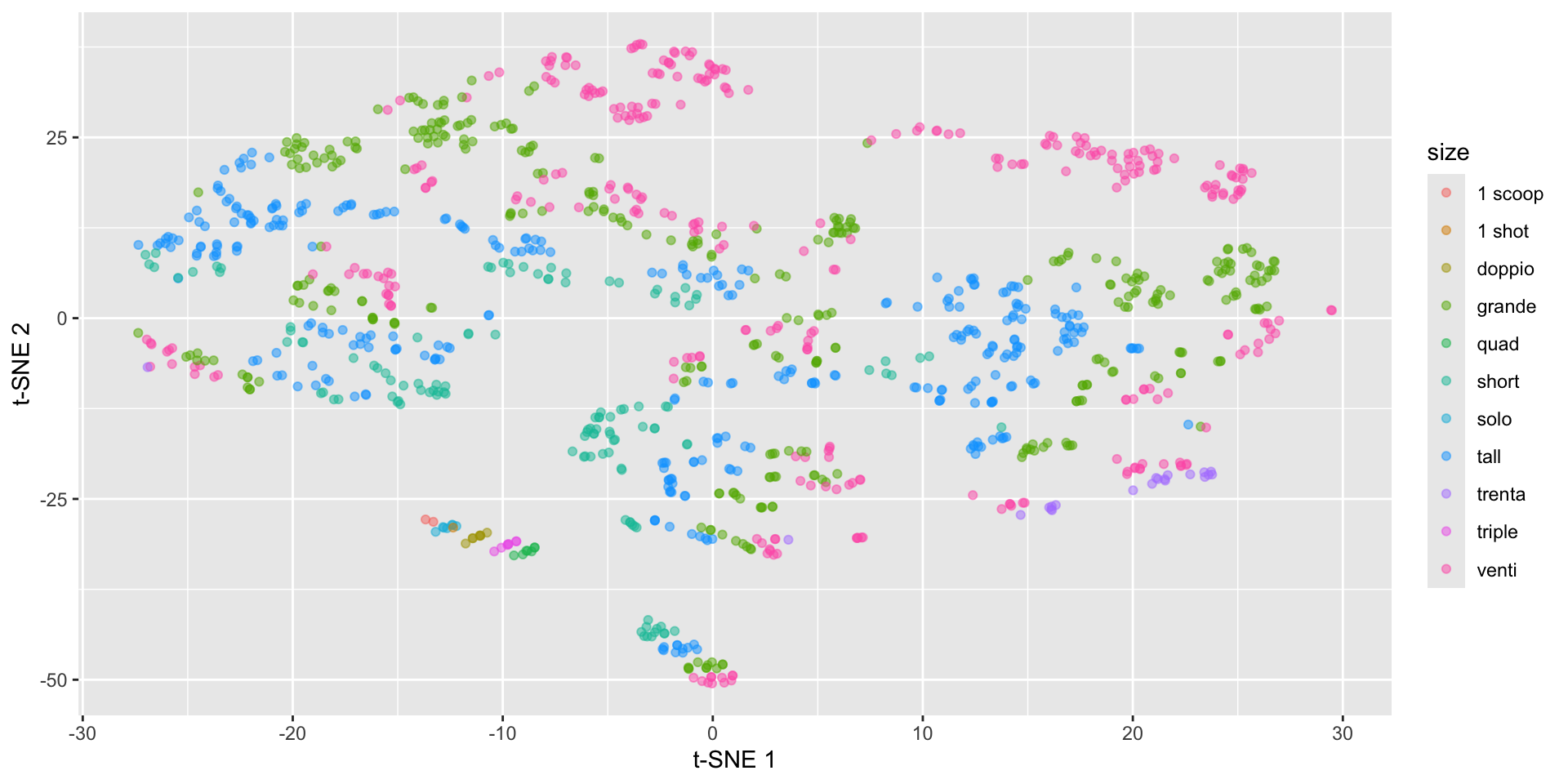

Starbucks t-SNE plot - watch the perplexity!

set.seed(2013)
tsne_fit <- starbucks |>
  dplyr::select(serv_size_m_l:caffeine_mg) |>
  scale() |>
  Rtsne(perplexity = 100,
        check_duplicates = FALSE)

starbucks |>
  mutate(tsne1 = tsne_fit$Y[,1],
         tsne2 = tsne_fit$Y[,2]) |>
  ggplot(aes(x = tsne1, y = tsne2,
             color = size)) +
  geom_point(alpha = 0.5) +
  labs(x = "t-SNE 1", y = "t-SNE 2")

Starbucks t-SNE plot - watch the perplexity!

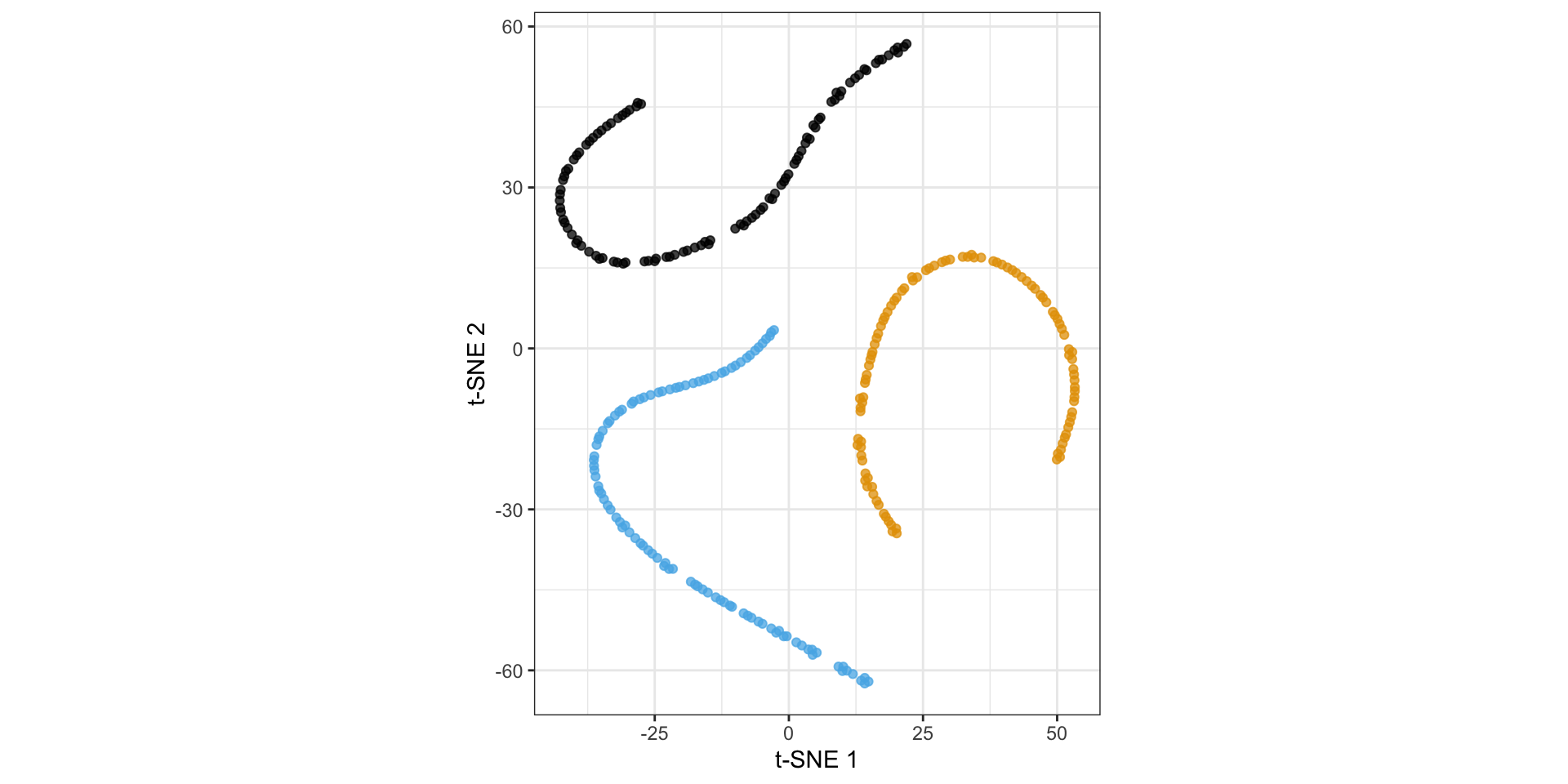

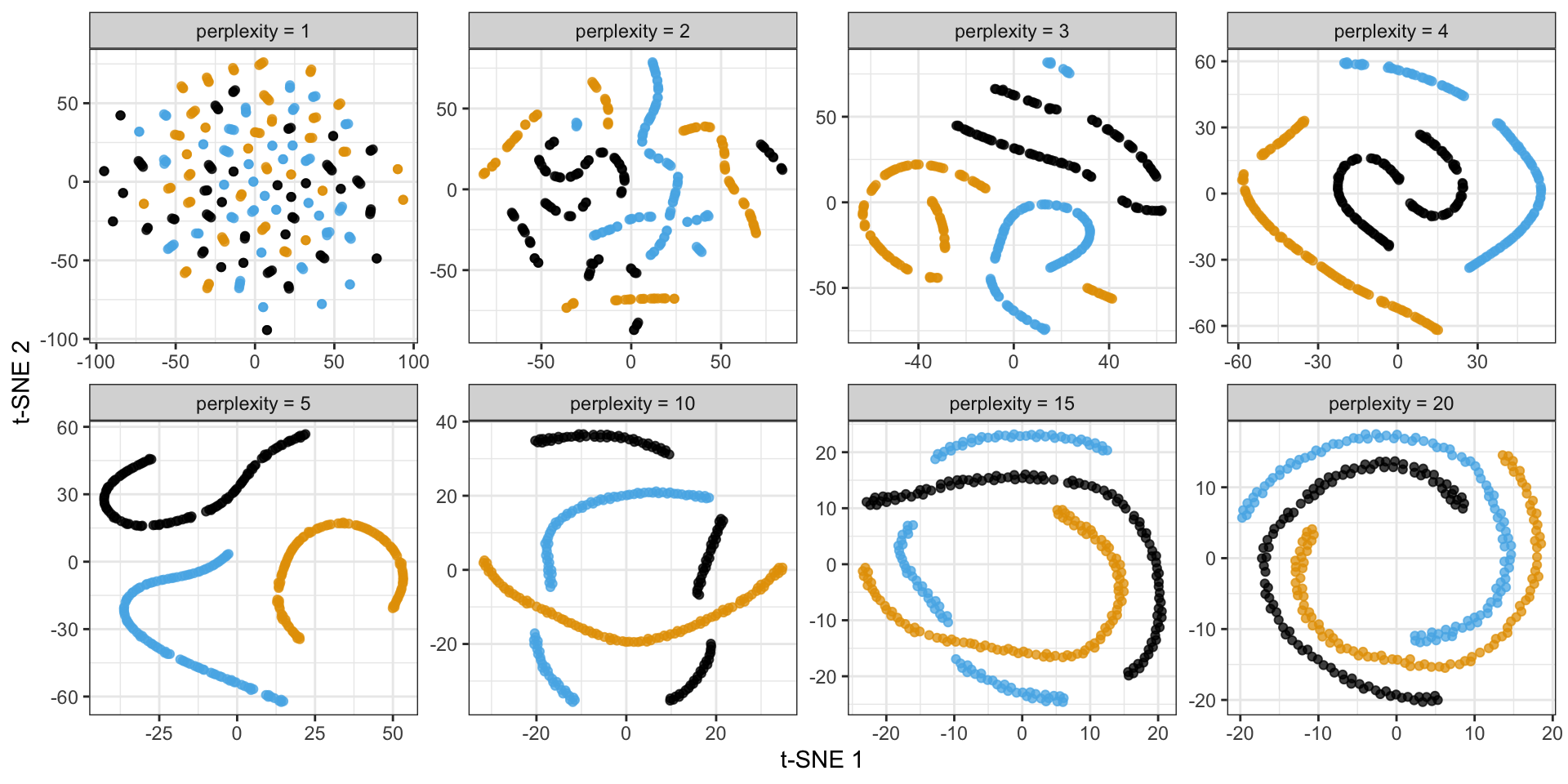

Back to the spirals: results depend on perplexity!

Criticisms of t-SNE plots

Poor scalability: does not scale well for large data, can practically only embed into 2 or 3 dimensions
Meaningless global structure: distance between clusters might not have clear interpretation and cluster size doesn’t have any meaning to it
Poor performance with very high dimensional data: need PCA as pre-dimension reduction step
Sometime random noise can lead to false positive structure in the t-SNE projection
Can NOT interpret like PCA!

Recap and next steps

Walked through PCA for dimension reduction
Discussed non-linear dimension reduction with t-SNE plots

HW3 is due TONIGHT!
HW4 is posted due next Wednesday Sept 25th

Next time: Visualizing trends and time series data
Recommended reading: CW Chapter 12 Visualizing associations among two or more quantitative variables, How to Use t-SNE Effectively, Understanding UMAP

PCA: singular value decomposition (SVD)

\[ X = U D V^T \]

Matrices \(U\) and \(V\) contain the left and right (respectively) singular vectors of scaled matrix \(X\)
\(D\) is the diagonal matrix of the singular values
SVD simplifies matrix-vector multiplication as rotate, scale, and rotate again

\(V\) is called the loading matrix for \(X\) with \(\phi_{j}\) as columns,

\(Z = X V\) is the PC matrix

Eigenvalue decomposition (aka spectral decomposition)

\[ X = U D V^T \]

\(V\) are the eigenvectors of \(X^TX\) (covariance matrix, \(^T\) means transpose)
\(U\) are the eigenvectors of \(XX^T\)
The singular values (diagonal of \(D\)) are square roots of the eigenvalues of \(X^TX\) or \(XX^T\)
Meaning that \(Z = UD\)

Eigenvalues guide dimension reduction

We want to choose \(p^* < p\) such that we are explaining variation in the data

Eigenvalues \(\lambda_j\) for \(j \in 1, \dots, p\) indicate the variance explained by each component

\(\sum_j^p \lambda_j = p\), meaning \(\lambda_j \geq 1\) indicates \(\text{PC}j\) contains at least one variable’s worth in variability
\(\lambda_j / p\) equals proportion of variance explained by \(\text{PC}j\)
Arranged in descending order so that \(\lambda_1\) is largest eigenvalue and corresponds to PC1
Can compute the cumulative proportion of variance explained (CVE) with \(p^*\) components:

\[\text{CVE}_{p^*} = \frac{\sum_j^{p*} \lambda_j}{p}\]

High-Dimensional Data

Reminders, previously, and today…

Thinking about distance…

Distances in general

Multi-dimensional scaling (MDS)

MDS example with Starbucks drinks

MDS example with Starbucks drinks

View structure with additional variables

View structure with additional variables

Dimension reduction - searching for variance

Principal Component Analysis (PCA)

What are principal components?

What are principal components?

What are principal components?

Visualizing PCA in two dimensions

Visualizing PCA in two dimensions

Visualizing PCA in two dimensions

Visualizing PCA in two dimensions

Visualizing PCA in two dimensions

So what do we do with the principal components?

Working with PCA on Starbucks drinks

Computing Principal Components

Starbucks drinks: PC1 and PC2

Starbucks drinks: PC1 and PC2

Making PCs interpretable with biplots (factoextra)

Making PCs interpretable with biplots (factoextra)

How many principal components to use?

Intuition: Additional principal components will add smaller and smaller variance

Create scree plot (aka “elbow plot”) to choose

Nonlinear dimension reduction, e.g., t-SNE

Consider the following spiral structure…

PCA simply rotates the data…

Nonlinear dimension reduction with t-SNE

t-distributed stochastic neighbor embedding

t-distributed stochastic neighbor embedding

Starbucks t-SNE plot with Rtsne

Starbucks t-SNE plot with Rtsne

Starbucks t-SNE plot - involves randomness!

Starbucks t-SNE plot - involves randomness!

Starbucks t-SNE plot - watch the perplexity!

Starbucks t-SNE plot - watch the perplexity!

Back to the spirals: results depend on perplexity!

Criticisms of t-SNE plots

Recap and next steps

PCA: singular value decomposition (SVD)

Eigenvalue decomposition (aka spectral decomposition)

Eigenvalues guide dimension reduction

Making PCs interpretable with biplots (`factoextra`)

Making PCs interpretable with biplots (`factoextra`)

Starbucks t-SNE plot with `Rtsne`

Starbucks t-SNE plot with `Rtsne`
